Band Pass TRF Radio Schematics

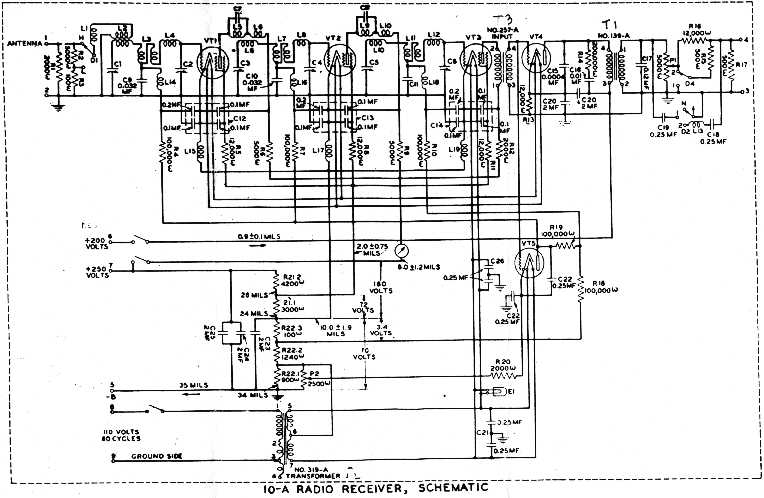

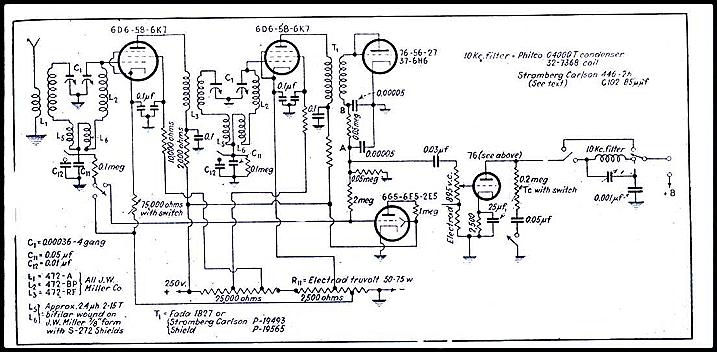

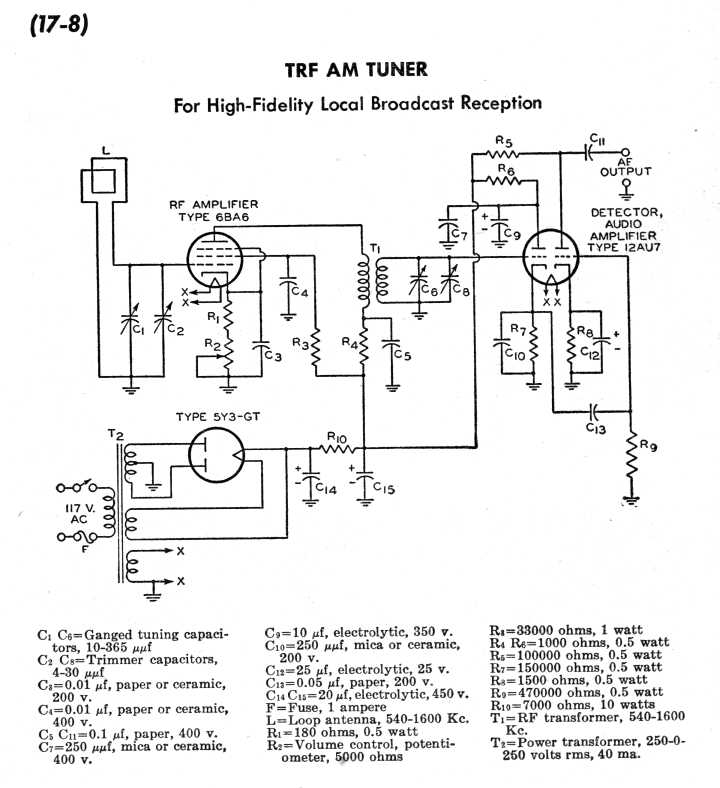

This page contains the schematics of some interesting TRF AM Broadcast Radio Receivers. Most are of the "Band Pass" type, using pairs of coupled coils.

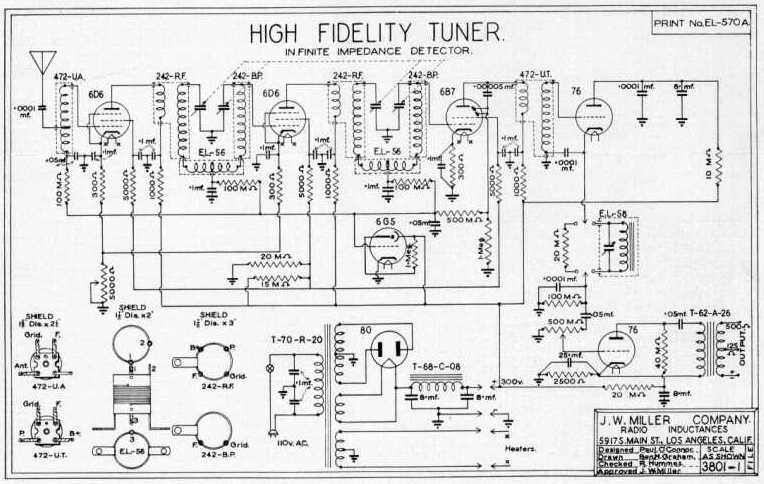

The complete article on the J.W. Miller "570" can be found here: J.W. Miller "570" Article


                                                                      10/27/02
