Principles of Operation of the Ampliphase Transmitter



This article was published by RCA in Broadcast News, Vol. No. 104, June, 1959.

It explains the principles of RCA's first Ampliphase Transmitter, the BTA-50G
50 kW AM Broadcast Transmitter.


Principles of Operation of the Ampliphase Transmitter, page 1

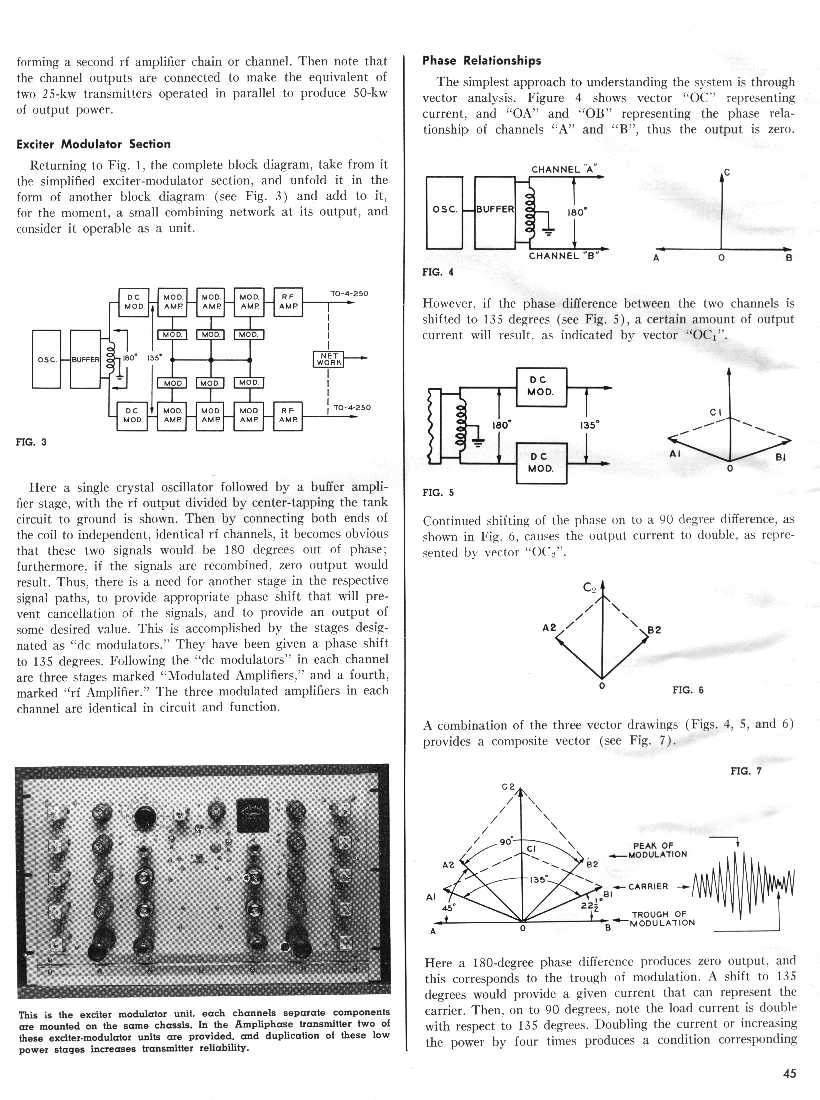

Principles of Operation of the Ampliphase Transmitter, page 2

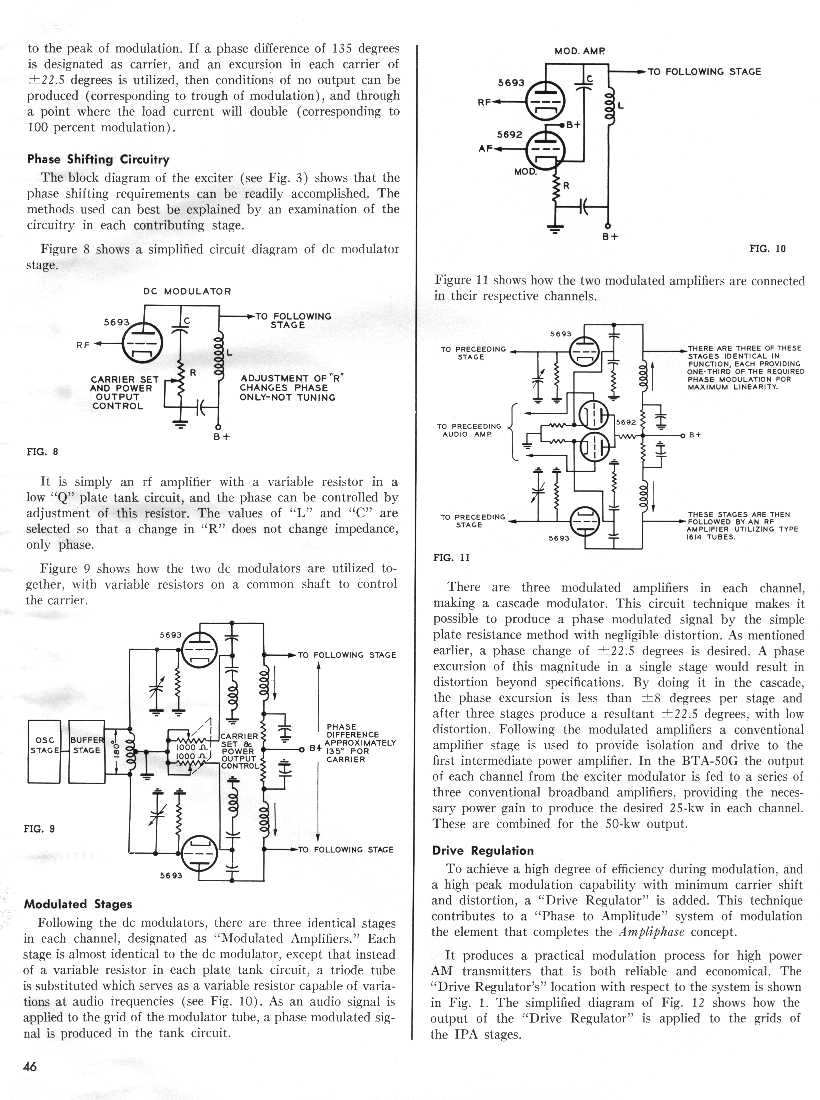

Principles of Operation of the Ampliphase Transmitter, page 3

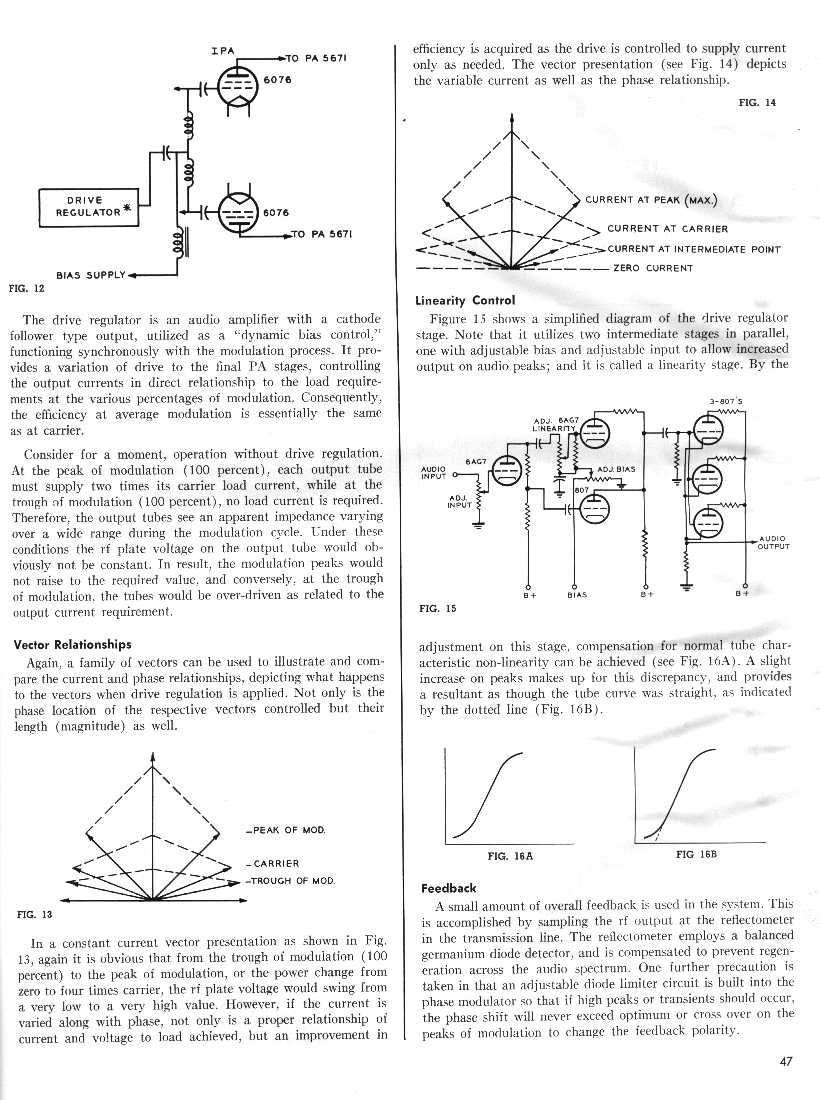

Principles of Operation of the Ampliphase Transmitter, page 4



                                                                      7/26/00
